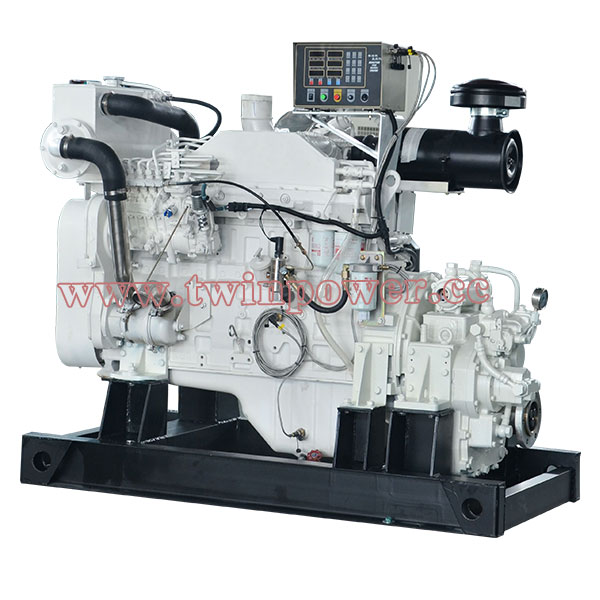

Dongfeng Cummins 6BTA5.9-M150 Marine Diesel Engine

150HP | 6-Cylinder | Inboard | Turbocharged | Reliable Power for Marine Vessels

Specifications:

• Model: 6BTA5.9-M150
• Rating Type: Continuous
• Rated Power: 110 kW (150 BHP) @ 2200 RPM
• Max Power: 120 kW
• Max Power Speed: 2270 RPM
• Compression Ratio: 17.3:1
• Bore: 102 mm
• Stroke: 120 mm
• Displacement: 5.9 L
• Number of Cylinders: 6
• Weight (Dry): 443 kg
• Coolant Capacity: 10.4 L
• Minimum Water Pump Inlet Pressure: TBD kPa
• Maximum Static Head of Coolant: TBD m
• Normal Operating Oil Pressure Range: 69-345 kPa
• Maximum Sump Oil Temperature: 127°C

Production Description:

• The Dongfeng Cummins 6BTA5.9-M150 is a high-performance marine auxiliary diesel engine designed for continuous operation. It features a 6-cylinder in-line configuration with a displacement of 5.9 liters and a rated power output of 110 kW (150 BHP) at 2200 RPM. The engine is turbocharged and aftercooled, ensuring efficient performance and reliability in various marine applications.

Product Advantages:

• High Efficiency: With a compression ratio of 17.3:1, the engine delivers exceptional power and fuel efficiency.
• Reliability: Designed for continuous operation, the 6BTA5.9-M150 is built to withstand the rigors of marine environments.
• Low Maintenance: The marine propulsion system requires minimal maintenance due to its robust design and advanced filtration systems.
• Adaptability: The inboard Engine can be installed in a variety of marine vessels due to its flexible mounting options and wide operating angles.

Key Features:

• Turbocharged and Aftercooled: Ensures optimal performance and efficiency.
• Electronic Fuel System: Precise fuel delivery for improved combustion and reduced emissions.
• Advanced Cooling System: Maintains engine temperatures within safe operating ranges, extending engine life.
• Robust Lubrication System: Ensures proper oil pressure and flow for reliable engine operation.

Applications:

The Dongfeng Marine Diesel Propulsion Engine – Cummins 6BTA is ideal for a wide range of applications, including:

• Commercial Vessels: Fishing boats, cargo ships, and passenger vessels.
• Pleasure Crafts: Yachts, sailboats, and other recreational watercraft.
• Work Boats: Tugboats, dredgers, and other marine construction equipment.
• Military and Government Vessels: Patrol boats, research vessels, and other specialized marine craft.

Product Availability

• Africa Middle East, Asia Pacific, Europe, Latin America, North America
