Cummins 300KW Marine Genset
Category:
Model:
CCFJ300J-W
Rated Power:
300kw
Frequency:
50HZ
Voltage:
400V
Application:
Marine Main Genset
Packing Size:
3170*1000*1920mm
Weight:
3360kgs
HS Code:
850212
Technical Specification
Generator Set Specification
Model
CCFJ300J-W
Rated Power
300kw
Frequency
50hz
Voltage
400v
Emission
IMO I / IMO II
Certificate
CCS, BV, ABS, LR...
Engine Specification
Brand
Cummins
Engine Model
Rated Power @1500rpm
336KW
Overload Power @1500rpm
369KW
Rated Power @1800rpm
--
Overload Power @1800rpm
--
Fuel Consumption at 1500rpm
82.5L/hr
Fuel Consumption at 1800rpm
--
Displacement
18.9L
Bore x Stroke
159*159mm
Aspiration
Turbocharged and Aftercooled
Cooling System
Heat exchanger & Sea water pump
Alternator Specification
Brand
Stamford
Model
HCM534C
Power
312kw
Frequency/Voltage
50hz,400v
Protection class
IP23
Type
Brush-less, self-excited, AVR
Insulation
H
Power Factor
0.8
Alternator brand Option
Marathon, Leroy Somer...
Control System Specification
Brand
Cummins
Model
KCM-IIA
Options
Deepsea, ComAp, DElF, Smartgen, Harsen etc.
Standard Scope of Supply
Diesel Engine
Alternator
Seawater pump
Heat exchanger
Steel Base frame
Digital Control system
Options
Soundproof Enclosure
Electronic Potentiometer
Spark Arrestor Muffler
Auto Start Function
Remote Controller
Water heater
Main Switch Board
Download of Cummins 300KW Marine Genset Datasheet
Model
Power
Engine Datasheet
Alternator Datasheet
Service Manual
Genset Drawing
Related Products
Cummins 6CTA8.3 Marine Genset
Model: CCFJ128J-W
Rated Power: 128KW
Application: Marine Main Genset
Packing Size: 2120*1000*1360mm
HS Code: 850212

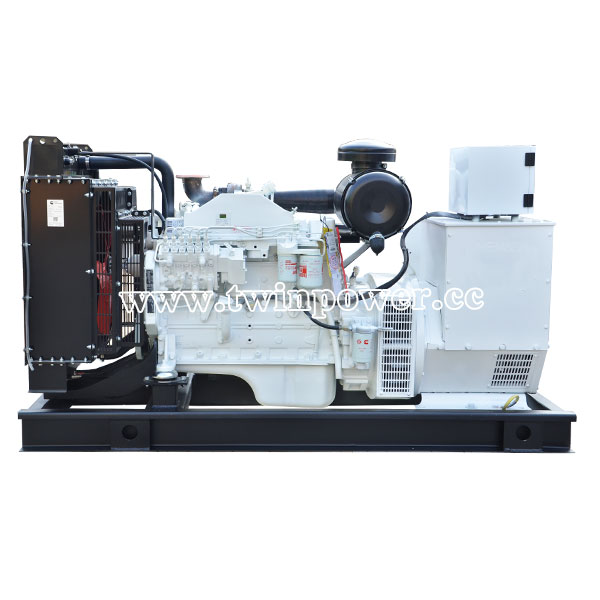

Cummins 6B5.9 Marine Emergency Genset
